In the intricate design and manufacturing of modern vehicles, while attention often focuses on major components, the reliability and performance of countless smaller parts are equally critical. Precision fasteners, often unseen, are the linchpin of safety, durability, and efficient assembly.

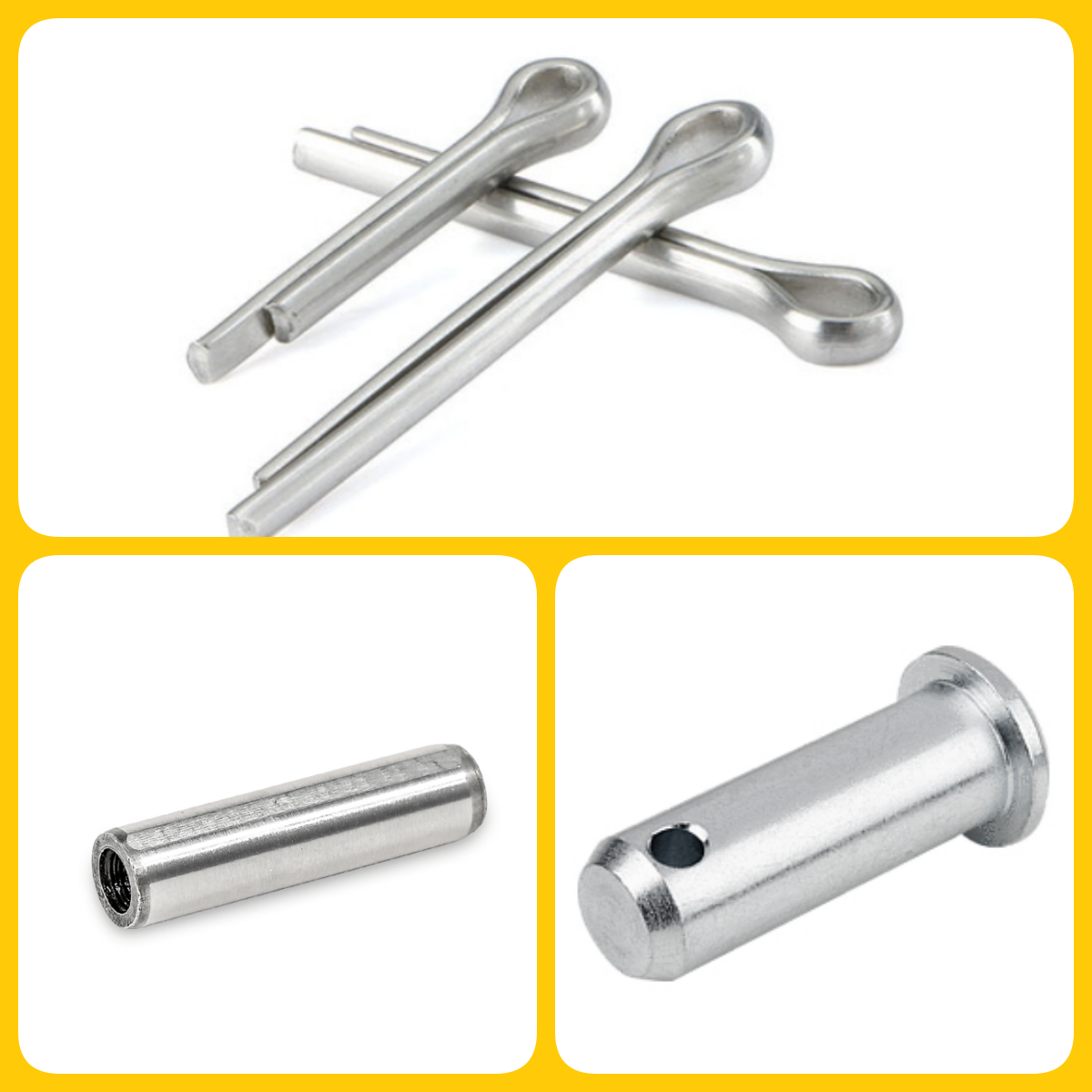

At Zhejiang Zhongrui Auto Parts, we specialize in providing the high-quality, standardized fastening solutions that the global automotive industry relies on. Today, we explore three fundamental types of pins – Parallel Pins with Internal Thread, Clevis Pins with Head, and Split Pins – highlighting their specific roles, key advantages, and the importance of international standards like GB/T, DIN, ISO, and JIS for seamless automotive integration.

Understanding these vital components is key for automotive engineers, designers, procurement specialists, and manufacturing professionals striving for excellence.

1. Parallel Pins with Internal Thread: Precision Alignment with Ease of Maintenance

Precision is paramount in many automotive sub-assemblies, particularly where components must be accurately located relative to one another. Parallel Pins with Internal Thread are engineered specifically for this purpose, providing precise alignment and a secure interference fit.

What They Are: These solid cylindrical pins feature a highly controlled diameter for a snug fit in precision-drilled holes. A key distinguishing feature is the internal thread at one end, designed to accept a puller screw.

Why They Matter in Automotive:

Accurate Positioning: Critical for the functionality of mating parts. In transmissions, for instance, precise alignment of gears and shafts is essential for smooth power transfer and preventing premature wear.
Secure Interference Fit: Provides a strong joint capable of withstanding vibration and shear forces inherent in vehicle operation.
Streamlined Maintenance: The internal thread is a significant advantage. When components need disassembly for maintenance or repair, a puller screw can be inserted into the thread, allowing the pin to be extracted without damaging the surrounding material or the pin itself. This reduces downtime and simplifies complex assembly/disassembly processes in manufacturing and service environments.

Key Advantages for Automotive Applications:

Guaranteed Precision: Manufactured to tight tolerances (e.g., as per DIN 7979 or ISO 8735), ensuring reliable and repeatable alignment.
Facilitates Disassembly: Internal thread drastically simplifies extraction compared to solid pins, minimizing potential damage.
Durable Performance: Typically made from hardened steel, offering high shear strength and resistance to wear.
Versatile Materials: Suitable for joining components made from common automotive materials like steel, aluminum alloys, and certain composites.

Ideal Automotive Applications:

Transmission Assemblies: Locating shafts, bearings, and housing components.
Engine Block Alignment: Positioning cylinder heads or manifolds.
Manufacturing Fixtures: Ensuring accurate setup for welding or machining processes.
Die & Mold Alignment: Maintaining precision in stamping or injection molding equipment.

Standardization & Interchangeability: These pins are defined by various standards: GB/T 120.2-2000, ISO 8735:1997, DIN 7979, JIS B 1359, DIN EN 28735:1992, ISO 8733:1997, KS B 1309:2000. The equivalence noted in standards like GB/T 120.2 and ISO 8735 is crucial. While dimensional details and materials might vary slightly across all listed standards, the core concept of a precision parallel pin with an internal thread for extraction is consistent. Understanding these standards helps automotive manufacturers source equivalent, high-quality pins from various global suppliers, ensuring reliable performance regardless of the specific manufacturing origin (provided the material grade and tolerance class meet the application requirement).

2. Clevis Pins with Head: Enabling Pivoting and Linkage in Automotive Systems

Many automotive systems rely on components that pivot or articulate, from steering linkages to pedal assemblies. Clevis Pins with Head are foundational fasteners for creating these crucial hinge points.

What They Are: Clevis pins are non-threaded cylindrical pins with a head at one end and one or more holes at the other, designed to be inserted through a clevis (a U-shaped fitting with holes in the ends) and secured, typically with a split pin or cotter pin. The head provides a bearing surface and prevents the pin from passing entirely through the assembly.

Why They Matter in Automotive:

Reliable Pivot Points: They create a secure, low-friction axis for rotational movement between components.
Accommodating Angular Misalignment: The design inherently allows some degree of angular movement, essential in linkages that move through arcs or experience slight misalignment during operation.
Load Bearing: Primarily designed to handle shear forces (forces perpendicular to the pin's axis).
Simple Assembly/Disassembly: The headed design and securing method (split pin) facilitate relatively quick installation and removal for maintenance or adjustment.

Key Advantages for Automotive Applications:

Robust Linkage: Provides a strong connection for pivoting components in systems experiencing dynamic loads.
Corrosion Protection Options: Available in materials like stainless steel or with finishes like zinc plating or Dacromet, crucial for resisting environmental degradation (moisture, salt, chemicals), extending lifespan and ensuring reliability.
Standardized Design: Defined by standards like DIN 1444, ISO 2341, GB/T 882, SAE J512, JIS B 2801, ASME B18.8.2M, ensuring dimensional consistency and compatibility with standard clevis fittings.
Ease of Maintenance: The headed design and common securing methods allow for straightforward inspection, lubrication, or replacement.

Ideal Automotive Applications:

Steering Systems: Tie rod ends, steering arms.
Brake Systems: Pedal linkages, certain caliper pivots (verify load ratings).
Suspension Linkages: Connecting various arms and rods (verify load ratings).
Actuation Mechanisms: Door latches, hood/trunk releases, throttle linkages.
Pedal Boxes: Brake, clutch, and accelerator pedal pivots.
Seat Mechanisms: Adjusters and hinges.

Standardization & Interchangeability: Clevis pins are defined across numerous standards including GB/T 882-2008, ISO 2341:1986, DIN 1444, SAE J512, JIS B 2801, ASME B18.8.2M. While ISO 2341 is often considered a direct international counterpart to DIN 1444 and GB/T 882 (Form B), variations in material grades (e.g., SAE vs. ISO property classes), tolerances (Product Grades A/B), and specific dimensions exist across standards. However, understanding these standards allows automotive manufacturers to select pins that meet the necessary shear strength and dimensional requirements, facilitating sourcing flexibility from global suppliers while ensuring performance in linkage applications.

3. Split Pins (Cotter Pins): Simple, Reliable Locking Against Loosening

Often used in conjunction with clevis pins, castle nuts, or slotted nuts, split pins (commonly called cotter pins in North America) are a basic yet exceptionally effective mechanical locking device.

What They Are: Split pins are semi-rigid metal pins with a head on one end and a lengthwise split, allowing the two halves to be spread apart after insertion.

Why They Matter in Automotive:

Positive Locking Mechanism: They act as a physical barrier, preventing other fasteners (like nuts) or pins (like clevis pins) from backing out due to vibration, rotation, or external forces.
Safety Critical Back-up: In applications like securing castle nuts on wheel bearings or critical linkages, the split pin is a vital safety redundancy, preventing catastrophic failure if the primary fastener loosens.
Quick Visual Inspection: Whether a split pin is properly installed and the ends are spread is easily verifiable during routine checks.
Economical Solution: A simple design and manufacturing process make them a very cost-effective locking method.

Key Advantages for Automotive Applications:

Reliable Anti-Loosening: Provides a simple, mechanical lock essential in high-vibration automotive environments.
Easy Manual Installation: Requires minimal tools (pliers or a hammer) and no special skills.
Broad Applicability: Used across a wide range of diameters to secure various sizes of nuts, bolts, and pins.
Corrosion Resistance Options: Available in materials like zinc-plated steel (standard for cost-effectiveness and basic protection) or stainless steel for enhanced durability in exposed areas.
Adherence to Standards: Manufactured to specifications like DIN 94, ISO 1234, GB/T 91, ASME B18.8.1, ANSI B18.6.3, JIS B 1351, EN 22340, ensuring material quality and dimensional consistency for reliable fit and function. ISO 1234 and DIN 94 are widely considered equivalent to GB/T 91.

Ideal Automotive Applications:

Securing Castle Nuts: On wheel bearings, axles, and suspension components.
Locking Clevis Pins: In steering, suspension, and brake linkages.
Fastening Yoke Nuts: In drivetrain components.
Securing Pins and Fasteners: In various control arms, tie rods, and chassis components where a simple lock is needed.

Standardization & Interchangeability: Split pins are highly standardized globally, defined by standards like GB/T 91-2000, ISO 1234:1997, DIN 94:1987, ASME B18.8.1-2020, ANSI B18.6.3, JIS B 1351:2010, EN 22340:1992. The strong equivalence between GB/T 91, ISO 1234, and DIN 94 ensures that automotive manufacturers can reliably source interchangeable split pins from suppliers worldwide, ensuring consistent quality and fit for safety-critical locking tasks. Different standards may specify slightly different materials or finishes, but the core function and dimensional series are largely aligned in their equivalent forms.
